PLASTİK KASA IP67 3 in 1 DIM EDİLEBİLİR LED GÜÇ KAYNAKLARI

LPF-16D / LPF-25D / LPF-40D / LPF-60D / LPF-90D

● Universal AC Besleme Girişi / Tam skala (305VAC’ye kadar)
● Korumalar: Kısa devre / Aşırıyük / Aşırı voltaj / Aşırı sıcaklık
● Dahili aktif PFC fonksiyonu
● Doğal hava sirkülasyonu ile soğutma
● Tam izoleli plastik kasa
● Tamamen IP67 seviyesi ile kuşatılmıştır
● Sınıf 2 güç birimi, FG yok
● Sınıf 2 güç birimi
● LED aydınlatma ve hareketli yazı uygulamaları için ideal
● Aydınlatma için gerekli güvenlik kuralları ile uyumlu
● Kuru/rutubetli/ıslak ortamlar için uygun
● 2 yıl garanti

MODEL	GİRİŞ	ÇIKIŞ		EBATLAR

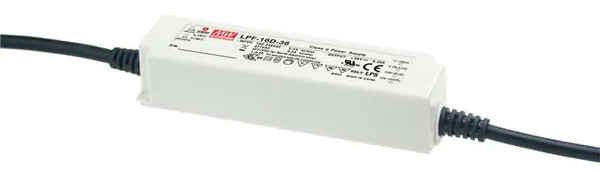

16W
LPF-16D-12	90-305VAC 127-431VDC	12VDC	1.34A	148x40x32 mm
LPF-16D-15	90-305VAC 127-431VDC	15VDC	1.07A	148x40x32 mm
LPF-16D-20	90-305VAC 127-431VDC	20VDC	0.8A	148x40x32 mm
LPF-16D-24	90-305VAC 127-431VDC	24VDC	0.67A	148x40x32 mm
LPF-16D-30	90-305VAC 127-431VDC	30VDC	0.54A	148x40x32 mm
LPF-16D-36	90-305VAC 127-431VDC	36VDC	0.45A	148x40x32 mm
LPF-16D-42	90-305VAC 127-431VDC	42VDC	0.39A	148x40x32 mm
LPF-16D-48	90-305VAC 127-431VDC	48VDC	0.34A	148x40x32 mm
LPF-16D-54	90-305VAC 127-431VDC	54VDC	0.3A	148x40x32 mm

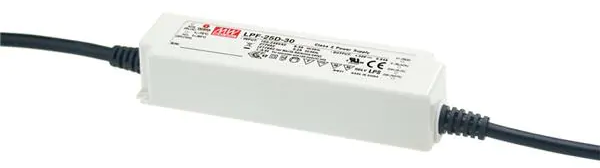

25W
LPF-25D-12	90-305VAC 127-431VDC	12VDC	2.1A	148x40x32 mm
LPF-25D-15	90-305VAC 127-431VDC	15VDC	1.67A	148x40x32 mm
LPF-25D-20	90-305VAC 127-431VDC	20VDC	1.25A	148x40x32 mm
LPF-25D-24	90-305VAC 127-431VDC	24VDC	1.05A	148x40x32 mm
LPF-25D-30	90-305VAC 127-431VDC	30VDC	0.84A	148x40x32 mm
LPF-25D-36	90-305VAC 127-431VDC	36VDC	0.7A	148x40x32 mm
LPF-25D-42	90-305VAC 127-431VDC	42VDC	0.6A	148x40x32 mm
LPF-25D-48	90-305VAC 127-431VDC	48VDC	0.53A	148x40x32 mm
LPF-25D-54	90-305VAC 127-431VDC	54VDC	0.47A	148x40x32 mm

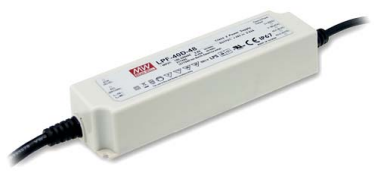

40W
LPF-40D-12	90-305VAC 127-431VDC	12VDC	3.34A	162.5x43x32 mm
LPF-40D-15	90-305VAC 127-431VDC	15VDC	2.67A	162.5x43x32 mm
LPF-40D-20	90-305VAC 127-431VDC	20VDC	2A	162.5x43x32 mm
LPF-40D-24	90-305VAC 127-431VDC	24VDC	1.67A	162.5x43x32 mm
LPF-40D-30	90-305VAC 127-431VDC	30VDC	1.34A	162.5x43x32 mm
LPF-40D-36	90-305VAC 127-431VDC	36VDC	1.12A	162.5x43x32 mm
LPF-40D-42	90-305VAC 127-431VDC	42VDC	0.96A	162.5x43x32 mm
LPF-40D-48	90-305VAC 127-431VDC	48VDC	0.84A	162.5x43x32 mm
LPF-40D-54	90-305VAC 127-431VDC	54VDC	0.76A	162.5x43x32 mm

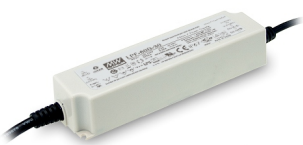

60W
LPF-60D-12	90-305VAC 127-431VDC	12VDC	5A	162.5x43x32 mm
LPF-60D-15	90-305VAC 127-431VDC	15VDC	4A	162.5x43x32 mm
LPF-60D-20	90-305VAC 127-431VDC	20VDC	3A	162.5x43x32 mm
LPF-60D-24	90-305VAC 127-431VDC	24VDC	2.5A	162.5x43x32 mm
LPF-60D-30	90-305VAC 127-431VDC	30VDC	2A	162.5x43x32 mm
LPF-60D-36	90-305VAC 127-431VDC	36VDC	1.67A	162.5x43x32 mm
LPF-60D-42	90-305VAC 127-431VDC	42VDC	1.43A	162.5x43x32 mm
LPF-60D-48	90-305VAC 127-431VDC	48VDC	1.25A	162.5x43x32 mm
LPF-60D-54	90-305VAC 127-431VDC	54VDC	1.12A	162.5x43x32 mm

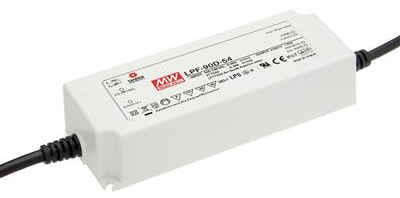

90W
LPF-90D-15	90-305VAC 127-431VDC	15VDC	5A	161x61x36 mm
LPF-90D-20	90-305VAC 127-431VDC	20VDC	4.5A	161x61x36 mm
LPF-90D-24	90-305VAC 127-431VDC	24VDC	3.75A	161x61x36 mm
LPF-90D-30	90-305VAC 127-431VDC	30VDC	3A	161x61x36 mm
LPF-90D-36	90-305VAC 127-431VDC	36VDC	2.5A	161x61x36 mm
LPF-90D-42	90-305VAC 127-431VDC	42VDC	2.15A	161x61x36 mm
LPF-90D-48	90-305VAC 127-431VDC	48VDC	1.88A	161x61x36 mm
LPF-90D-54	90-305VAC 127-431VDC	54VDC	1.67A	161x61x36 mm
