HLG Serisi PFC Fonksiyonlu Metal Kasa LED Güç Kaynakları

HLG-40H / HLG-60H / HLG-80H / HLG-100H / HLG-120H

HLG-150H / HLG-185H / HLG-240H / HLG-320H / HLG-600H

● Universal AC giriş 90-305 VAC; 127-431VDC
● Sabit akım ve sabit voltaj modları
● %96’ya kadar yüksek verimlilik oranı
● Class II güç ünitesi
● İç veya dış mekan kullanımına uygun IP65/IP 67 tasarımı, metal kasa
● Korumalar: Kısa devre/Aşırı Yük/Aşırı Voltaj/Aşırı Sıcaklık
● Dahili aktif PFC fonksiyonu
● Serbest hava akımı soğutmalı
● %100 tam yük testi

MODEL SEÇİMİ:
A TİPİ: IP65 .Çıkış voltaj ve sabit akım seviyesi dahili potansiyometre ile ayarlanabilir.
B TİPİ: IP67.Sabit akım seviyesi 0-10VDC ,PWM Sinyal veya direnç ile dimleme için çıkan kabloya bağlantı yapılarak ayarlanabilir.
C TİPİ: Giriş ve çıkış bağlantısı için terminal bloğu. Çıkış voltaj ve sabit akım seviyesi dahili potansiyometre ile ayarlanabilir. BOŞ (BLANK) TİP: IP67.Giriş ve çıkış bağlantısı kablo ile yapılır.
D TİPİ(OPSİYON): IP67 . Timer dimming fonksiyonu. Detaylar için iletişime geçiniz

MODEL	GİRİŞ	ÇIKIﬁ		EBATLAR
40W

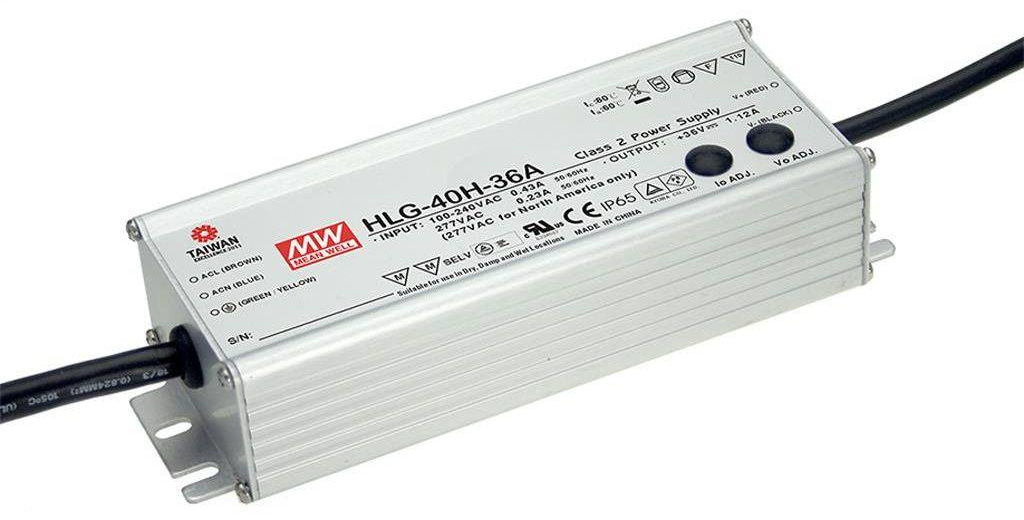

HLG-40H-12A	90-305VAC 127-431VDC	12VDC	3.33A	171 X 61.5 X 36.8 mm
HLG-40H-15A	90-305VAC 127-431VDC	15VDC	2.67A	171 X 61.5 X 36.8 mm
HLG-40H-20A	90-305VAC 127-431VDC	20VDC	2A	171 X 61.5 X 36.8 mm
HLG-40H-24A	90-305VAC 127-431VDC	24VDC	1.67A	171 X 61.5 X 36.8 mm
HLG-40H-30A	90-305VAC 127-431VDC	30VDC	1.34A	171 X 61.5 X 36.8 mm
HLG-40H-36A	90-305VAC 127-431VDC	36VDC	1.12A	171 X 61.5 X 36.8 mm
HLG-40H-42A	90-305VAC 127-431VDC	42VDC	0.96A	171 X 61.5 X 36.8 mm
HLG-40H-48A	90-305VAC 127-431VDC	48VDC	0.84A	171 X 61.5 X 36.8 mm
HLG-40H-54A	90-305VAC 127-431VDC	54VDC	0.75A	171 X 61.5 X 36.8 mm

60W

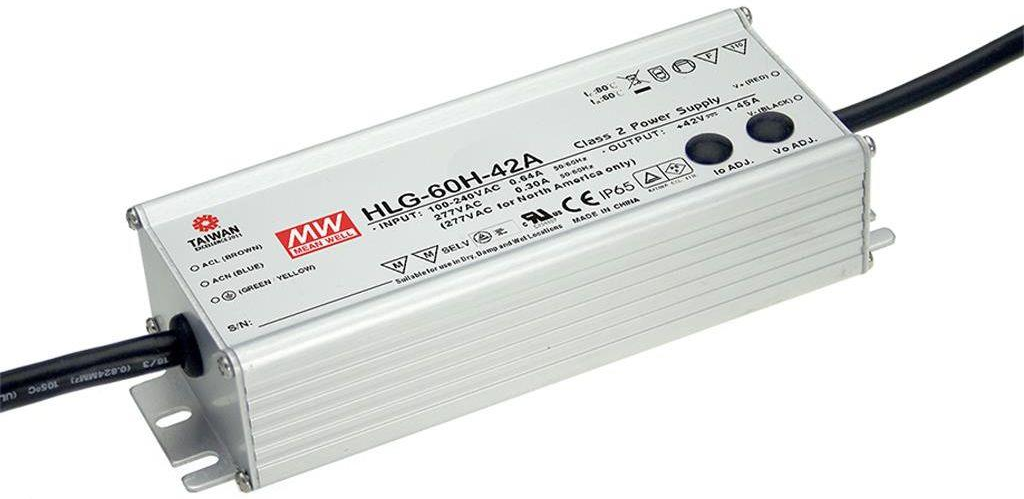

HLG-60H-15A	90-305VAC 127-431VDC	15VDC	4A	171 X 61.5 X 36.8 mm
HLG-60H-20A	90-305VAC 127-431VDC	20VDC	3A	171 X 61.5 X 36.8 mm
HLG-60H-24A	90-305VAC 127-431VDC	24VDC	2.5A	171 X 61.5 X 36.8 mm
HLG-60H-30A	90-305VAC 127-431VDC	30VDC	2A	171 X 61.5 X 36.8 mm
HLG-60H-36A	90-305VAC 127-431VDC	36VDC	1.7A	171 X 61.5 X 36.8 mm
HLG-60H-42A	90-305VAC 127-431VDC	42VDC	1.45A	171 X 61.5 X 36.8 mm
HLG-60H-48A	90-305VAC 127-431VDC	48VDC	1.3A	171 X 61.5 X 36.8 mm
HLG-60H-54A	90-305VAC 127-431VDC	54VDC	1.15A	171 X 61.5 X 36.8 mm

80W

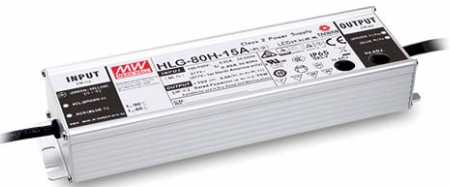

HLG-80H-12A	90-305VAC 127-431VDC	12VDC	5A	195.6 X 61.5 X 38.8 mm
HLG-80H-15A	90-305VAC 127-431VDC	15VDC	5A	195.6 X 61.5 X 38.8 mm
HLG-80H-20A	90-305VAC 127-431VDC	20VDC	4A	195.6 X 61.5 X 38.8 mm
HLG-80H-24A	90-305VAC 127-431VDC	24VDC	3.4A	195.6 X 61.5 X 38.8 mm
HLG-80H-30A	90-305VAC 127-431VDC	30VDC	2.7A	195.6 X 61.5 X 38.8 mm
HLG-80H-36A	90-305VAC 127-431VDC	36VDC	2.3A	195.6 X 61.5 X 38.8 mm
HLG-80H-42A	90-305VAC 127-431VDC	42VDC	1.95A	195.6 X 61.5 X 38.8 mm
HLG-80H-48A	90-305VAC 127-431VDC	48VDC	1.7A	195.6 X 61.5 X 38.8 mm
HLG-80H-54A	90-305VAC 127-431VDC	54VDC	1.5A	195.6 X 61.5 X 38.8 mm

100W

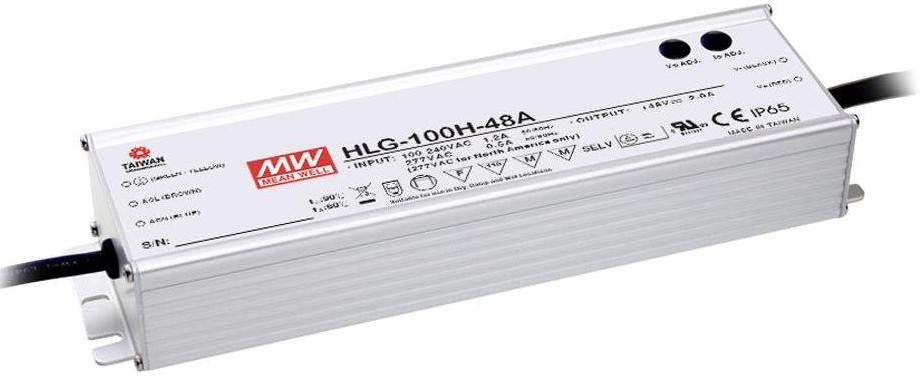

HLG-100H-20A	90-305VAC 127-431VDC	20VDC	4.8A	220 X 68 X 38.8 mm
HLG-100H-24A	90-305VAC 127-431VDC	24VDC	4A	220 X 68 X 38.8 mm
HLG-100H-30A	90-305VAC 127-431VDC	30VDC	3.2A	220 X 68 X 38.8 mm
HLG-100H-36A	90-305VAC 127-431VDC	36VDC	2.65A	220 X 68 X 38.8 mm
HLG-100H-42A	90-305VAC 127-431VDC	42VDC	2.28A	220 X 68 X 38.8 mm
HLG-100H-48A	90-305VAC 127-431VDC	48VDC	2A	220 X 68 X 38.8 mm
HLG-100H-54A	90-305VAC 127-431VDC	54VDC	1.77A	220 X 68 X 38.8 mm

120W
HLG-120H-12A	90-305VAC 127-431VDC	12VDC	10A	220 X 68 X38.8 mm
HLG-120H-15A	90-305VAC 127-431VDC	15VDC	8A	220 X 68 X38.8 mm
HLG-120H-20A	90-305VAC 127-431VDC	20VDC	6A	220 X 68 X38.8 mm
HLG-120H-24A	90-305VAC 127-431VDC	24VDC	5A	220 X 68 X38.8 mm
HLG-120H-30A	90-305VAC 127-431VDC	30VDC	4A	220 X 68 X38.8 mm
HLG-120H-36A	90-305VAC 127-431VDC	36VDC	3.4A	220 X 68 X38.8 mm
HLG-120H-42A	90-305VAC 127-431VDC	42VDC	2.9A	220 X 68 X38.8 mm
HLG-120H-48A	90-305VAC 127-431VDC	48VDC	2.5A	220 X 68 X38.8 mm
HLG-120H-54A	90-305VAC 127-431VDC	54VDC	2.3A	220 X 68 X38.8 mm

150W
HLG-150H-12A	90-305VAC 127-431VDC	12VDC	12.5A	228 X 68 X38.8 mm
HLG-150H-15A	90-305VAC 127-431VDC	15VDC	10A	228 X 68 X38.8 mm
HLG-150H-20A	90-305VAC 127-431VDC	20VDC	7.5A	228 X 68 X38.8 mm
HLG-150H-24A	90-305VAC 127-431VDC	24VDC	6.3A	228 X 68 X38.8 mm
HLG-150H-30A	90-305VAC 127-431VDC	30VDC	5A	228 X 68 X38.8 mm
HLG-150H-36A	90-305VAC 127-431VDC	36VDC	4.2A	228 X 68 X38.8 mm
HLG-150H-42A	90-305VAC 127-431VDC	42VDC	3.6A	228 X 68 X38.8 mm
HLG-150H-48A	90-305VAC 127-431VDC	48VDC	3.2A	228 X 68 X38.8 mm
HLG-150H-54A	90-305VAC 127-431VDC	54VDC	2.8A	228 X 68 X38.8 mm

185W
HLG-185H-12A	90-305VAC 127-431VDC	12VDC	13A	228 X 68 X 38.8 mm
HLG-185H-15A	90-305VAC 127-431VDC	15VDC	11.5A	228 X 68 X 38.8 mm
HLG-185H-20A	90-305VAC 127-431VDC	20VDC	9.3A	228 X 68 X 38.8 mm
HLG-185H-24A	90-305VAC 127-431VDC	24VDC	7.8A	228 X 68 X 38.8 mm
HLG-185H-30A	90-305VAC 127-431VDC	30VDC	6.2A	228 X 68 X 38.8 mm
HLG-185H-36A	90-305VAC 127-431VDC	36VDC	5.2A	228 X 68 X 38.8 mm
HLG-185H-42A	90-305VAC 127-431VDC	42VDC	4.4A	228 X 68 X 38.8 mm
HLG-185H-48A	90-305VAC 127-431VDC	48VDC	3.9A	228 X 68 X 38.8 mm
HLG-185H-54A	90-305VAC 127-431VDC	54VDC	3.45A	228 X 68 X 38.8 mm

240W
HLG-240H-12A	90-305VAC 127-431VDC	12VDC	16A	244.2 X 68 X 38.8 mm
HLG-240H-15A	90-305VAC 127-431VDC	15VDC	15A	244.2 X 68 X 38.8 mm
HLG-240H-20A	90-305VAC 127-431VDC	20VDC	12A	244.2 X 68 X 38.8 mm
HLG-240H-24A	90-305VAC 127-431VDC	24VDC	10A	244.2 X 68 X 38.8 mm
HLG-240H-30A	90-305VAC 127-431VDC	30VDC	8A	244.2 X 68 X 38.8 mm
HLG-240H-36A	90-305VAC 127-431VDC	36VDC	6.7A	244.2 X 68 X 38.8 mm
HLG-240H-42A	90-305VAC 127-431VDC	42VDC	5.72A	244.2 X 68 X 38.8 mm
HLG-240H-48A	90-305VAC 127-431VDC	48VDC	5A	244.2 X 68 X 38.8 mm
HLG-240H-54A	90-305VAC 127-431VDC	54VDC	4.45A	244.2 X 68 X 38.8 mm

320W
HLG-320H-12A	90-305VAC 127-431VDC	12VDC	22A	252 X 90 X 43.8 mm
HLG-320H-15A	90-305VAC 127-431VDC	15VDC	19A	252 X 90 X 43.8 mm
HLG-320H-20A	90-305VAC 127-431VDC	20VDC	15A	252 X 90 X 43.8 mm
HLG-320H-24A	90-305VAC 127-431VDC	24VDC	13.34A	252 X 90 X 43.8 mm
HLG-320H-30A	90-305VAC 127-431VDC	30VDC	10.7A	252 X 90 X 43.8 mm
HLG-320H-36A	90-305VAC 127-431VDC	36VDC	8.9A	252 X 90 X 43.8 mm
HLG-320H-42A	90-305VAC 127-431VDC	42VDC	7.65A	252 X 90 X 43.8 mm
HLG-320H-48A	90-305VAC 127-431VDC	48VDC	6.7A	252 X 90 X 43.8 mm
HLG-320H-54A	90-305VAC 127-431VDC	54VDC	5.95A	252 X 90 X 43.8 mm
480W
HLG-480H-24A	90-305VAC 127-431VDC	24VDC	20A	262 X 125 X 43.8 mm
HLG-480H-30A	90-305VAC 127-431VDC	30VDC	16A	262 X 125 X 43.8 mm
HLG-480H-36A	90-305VAC 127-431VDC	36VDC	13.3A	262 X 125 X 43.8 mm
HLG-480H-42A	90-305VAC 127-431VDC	42VDC	11.4A	262 X 125 X 43.8 mm
HLG-480H-48A	90-305VAC 127-431VDC	48VDC	10A	262 X 125 X 43.8 mm
HLG-480H-54A	90-305VAC 127-431VDC	54VDC	8.9A	262 X 125 X 43.8 mm
600W
HLG-600H-12A	90-305VAC 127-431VDC	12VDC	40A	280 X 144 X 48.5 mm
HLG-600H-15A	90-305VAC 127-431VDC	15VDC	36A	280 X 144 X 48.5 mm
HLG-600H-20A	90-305VAC 127-431VDC	20VDC	28A	280 X 144 X 48.5 mm
HLG-600H-24A	90-305VAC 127-431VDC	24VDC	25A	280 X 144 X 48.5 mm
HLG-600H-30A	90-305VAC 127-431VDC	30VDC	20A	280 X 144 X 48.5 mm
HLG-600H-36A	90-305VAC 127-431VDC	36VDC	16.7A	280 X 144 X 48.5 mm
HLG-600H-42A	90-305VAC 127-431VDC	42VDC	14.3A	280 X 144 X 48.5 mm
HLG-600H-48A	90-305VAC 127-431VDC	48VDC	12.5A	280 X 144 X 48.5 mm
HLG-600H-54A	90-305VAC 127-431VDC	54VDC	11.2A	280 X 144 X 48.5 mm

HLG Serisi PFC Fonksiyonlu Metal Kasa LED Güç Kaynakları

HLG-40H / HLG-60H / HLG-80H / HLG-100H / HLG-120H

HLG-150H / HLG-185H / HLG-240H / HLG-320H / HLG-600H
