PANEL MONTAJ DC - DC ÇEVİRİCİLER

    



SD-25 / SD-50 / SD-100 / SD-150 / SD-350 / SD-500 / SD-1000


PANEL MONTAJ DC-DC ÇEVİRİCİLER


● 2:1 geniş giriş voltaj aralığı (2:1 & 4:1 SD-500/1000 serileri)
● 1500VAC I/O izolasyonu
● Korumalar: Kısa devre, aşırı yük, aşırı voltaj
● Serbest hava akışı soğutmalı (SD-25/50/100/150/200 serileri)
● Dahili DC fan ile soğutma (SD-350/500/1000 serileri)
● Dahili uzaktan ON/OFF kontrolü ve çıkış voltaj algılama (SD-350/500/1000 serileri)
● DC OK sinyal çıkışı (SD-500/1000 serileri)
● %100 tam yük testi
● 2 yıl garanti

ÜRÜN KODUGİRİŞ GERİLİMİÇIKIŞ GERİLİMİ   EBATLAR
25W SD SERİSİ
SD-25A-59.2~18VDC5VDC5A99 x 97 x 36 mm
SD-25A-129.2~18VDC12VDC2.1A99 x 97 x 36 mm
SD-25A-249.2~18VDC24VDC1.1A99 x 97 x 36 mm
SD-25B-519~36VDC5VDC5A99 x 97 x 36 mm
SD-25B-1219~36VDC12VDC2.1A99 x 97 x 36 mm
SD-25B-2419~36VDC24VDC1.1A99 x 97 x 36 mm
SD-25C-536~72VDC5VDC5A99 x 97 x 36 mm
SD-25C-1236~72VDC12VDC 2.1A 99 x 97 x 36 mm
SD-25C-2436~72VDC24VDC 1.1A99 x 97 x 36 mm
50W SD SERİSİ
SD-50A-59.2~18VDC5VDC10A159 x 97 x 38 mm
SD-50A-129.2~18VDC12VDC4.2A159 x 97 x 38 mm
SD-50A-249.2~18VDC24VDC2.1A159 x 97 x 38 mm
SD-50B-519~36VDC5VDC10A159 x 97 x 38 mm
SD-50B-1219~36VDC12VDC4.2A 159 x 97 x 38 mm
SD-50B-2419~36VDC24VDC2.1A 159 x 97 x 38 mm
SD-50C-536~72VDC5VDC 10A 159 x 97 x 38 mm
SD-50C-1236~72VDC12VDC4.2A 159 x 97 x 38 mm
SD-50C-2436~72VDC24VDC2.1A  159 x 97 x 38 mm
100W SD SERİSİ
SD-100B-519~36VDC5VDC20A199 x 98 x 38 mm
SD-100B-1219~36VDC12VDC8.5A199 x 98 x 38 mm
SD-100B-2419~36VDC24VDC4.2A199 x 98 x 38 mm
SD-100C-536~72VDC5VDC20A199 x 98 x 38 mm
SD-100C-1236~72VDC12VDC8.5A199 x 98 x 38 mm
SD-100C-24 36~72VDC24VDC 4.2A 199 x 98 x 38 mm
SD-100D-5 72~144VDC5VDC 20A 199 x 98 x 38 mm
SD-100D-12 72~144VDC 12VDC 8.5A 199 x 98 x 38 mm
SD-100D-24 72~144VDC 24VDC  4.2A  199 x 98 x 38 mm
150W SD SERİSİ
SD-150B-1219~36VDC12VDC 12.5A199 x 110 x 50 mm
SD-150B-2419~36VDC24VDC6.3A199 x 110 x 50 mm
SD-150C-1236~72VDC12VDC 12.5A199 x 110 x 50 mm
SD-150C-2436~72VDC24VDC6.3A199 x 110 x 50 mm
SD-150D-1272~144VDC12VDC 12.5A199 x 110 x 50 mm
SD-150D-2472~144VDC 24VDC 6.3A 199 x 110 x 50 mm
350W SD SERİSİ
SD-350B-519~36VDC5VDC57A215 x 115 x 50 mm
SD-350B-1219~36VDC12VDC27.5A215 x 115 x 50 mm
SD-350B-2419~36VDC24VDC14.6A215 x 115 x 50 mm
SD-350B-4819~36VDC48VDC7.3A215 x 115 x 50 mm
SD-350C-536~72VDC5VDC60A215 x 115 x 50 mm
SD-350C-12 36~72VDC 12VDC27.5A 215 x 115 x 50 mm
SD-350C-24 36~72VDC 24VDC 14.6A 215 x 115 x 50 mm
SD-350C-48 36~72VDC 48VDC 7.3A 215 x 115 x 50 mm
SD-350D-5 72~144VDC 5VDC 60A 215 x 115 x 50 mm
SD-350D-12 72~144VDC 12VDC 29.2A215 x 115 x 50 mm
SD-350D-24 72~144VDC 24VDC  14.6A215 x 115 x 50 mm
SD-350D-48 72~144VDC 48VDC  7.3A215 x 115 x 50 mm
500W SD SERİSİ
SD-500L-1219~72VDC12VDC40A215 x 115 x 50 mm
SD-500L-2419~72VDC24VDC21A215 x 115 x 50 mm
SD-500L-4819~72VDC48VDC10.5A215 x 115 x 50 mm
SD-500H-1272~144VDC 12VDC40A215 x 115 x 50 mm
SD-500H-2472~144VDC 24VDC21A215 x 115 x 50 mm
SD-500H-4872~144VDC  48VDC10.5A215 x 115 x 50 mm

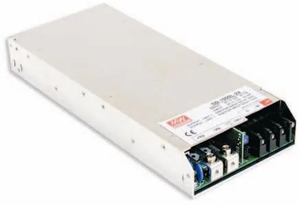

1000W SD SERİSİ
SD-1000L-1219~72VDC12VDC60A295 x 127 x 41 mm
SD-1000L-2419~72VDC24VDC40A295 x 127 x 41 mm
SD-1000L-4819~72VDC48VDC21A295 x 127 x 41 mm
SD-1000H-1272~144VDC  12VDC60A295 x 127 x 41 mm
SD-1000H-24 72~144VDC   24VDC40A295 x 127 x 41 mm
SD-1000H-48 72~144VDC   48VDC21A295 x 127 x 41 mm
