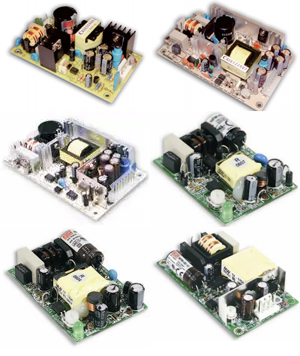

STANDART VE MEDİKAL AÇIK TİP GÜÇ KAYNAKLARI

PS-25 / PS-45 / PD-25 / PT-25 / PT-65 / NFM-05 / NFM-10 / NFM-15 / NFM-20

STANDART VE MEDİKAL AÇIK TİP GÜÇ KAYNAKLARI

● Universal AC giriş / Tam skala
● Düşük sızıntı akımı <0.5 ma.(PS-05/15)
● Düşük sızıntı akımı <300 mikro amper (NFM-20)
● Korumalar: Kısa devre, aşırı yük, aşırı voltaj, aşırı sıcaklık
● NFM serisi medikal on bord açık tip güç kaynağıdır.
● PS Serisi açık tip tek çıkışlı güç kaynağıdır.
● PD Serisi açık tip iki çıkışlı güç kaynağıdır. PT Serisi açık tip üç çıkışlı güç kaynağıdır.
● İzolasyon Class II (NFM-5,NFM-10,NFM-15) İzolasyon Class I (NFM-20)
● Serbest hava akışı soğutmalı
● %100 tam yük testi
● 2 yıl garanti

ÜRÜN KODU	BESLEME GERİLİMİ	ÇIKIŞ		EBATLAR

25W PS SERİSİ
PS-25-3.3	90-264VAC; 120-370VDC	3.3VDC	0-5.0A	107 × 61 × 28 mm
PS-25-5	90-264VAC; 120-370VDC	5.0VDC	0-5.0A	107 × 61 × 28 mm
PS-25-7.5	90-264VAC; 120-370VDC	7.5VDC	0-3.3A	107 × 61 × 28 mm
PS-25-12	90-264VAC; 120-370VDC	12.0VDC	0-2.1A	107 × 61 × 28 mm
PS-25-13.5	90-264VAC; 120-370VDC	13.5VDC	0-1.9A	107 × 61 × 28 mm
PS-25-15	90-264VAC; 120-370VDC	15.0VDC	0-1.7A	107 × 61 × 28 mm
PS-25-24	90-264VAC; 120-370VDC	24.0VDC	0-1.0A	107 × 61 × 28 mm
PS-25-27	90-264VAC; 120-370VDC	27.0VDC	0-0.9A	107 × 61 × 28 mm
PS-25-48	90-264VAC; 120-370VDC	48.0VDC	0-0.5A	107 × 61 × 28 mm

45W PS SERİSİ
PS-45-3.3	90-264VAC; 120-370VDC	3.3VDC	0-8.0A	127 × 76 × 28 mm
PS-45-5	90-264VAC; 120-370VDC	5.0VDC	0-8.0A	127 × 76 × 28 mm
PS-45-7.5	90-264VAC; 120-370VDC	7.5VDC	0-5.4A	127 × 76 × 28 mm
PS-45-12	90-264VAC; 120-370VDC	12.0VDC	0-3.7A	127 × 76 × 28 mm
PS-45-13.5	90-264VAC; 120-370VDC	13.5VDC	0-3.3A	127 × 76 × 28 mm
PS-45-15	90-264VAC; 120-370VDC	15.0VDC	0-3.0A	127 × 76 × 28 mm
PS-45-24	90-264VAC; 120-370VDC	24.0VDC	0-1.9A	127 × 76 × 28 mm
PS-45-27	90-264VAC; 120-370VDC	27.0VDC	0-1.7A	127 × 76 × 28 mm
PS-45-48	90-264VAC; 120-370VDC	48.0VDC	0-1.0A	127 × 76 × 28 mm

25W PD SERİSİ
PD-25A	85-264VAC; 120-370VDC	5VDC	0.2-2.5A	107 × 61 × 28 mm
		12VDC	0.1-1.5A
PD-25B	85-264VAC; 120-370VDC	5VDC	0.2-2.0A	107 × 61 × 28 mm
		24VDC	0.1-1.0A
PD-2505	85-264VAC; 120-370VDC	5VDC	0.1-3.0A	107 × 61 × 28 mm
		–5VDC	0.1-2.5A
PD-2512	85-264VAC; 120-370VDC	12VDC	0.1-1.2A	107 × 61 × 28 mm
		–12VDC	0.1-1.2A
PD-2515	85-264VAC; 120-370VDC	15VDC	0.1-1.0A	107 × 61 × 28 mm
		–15VDC	0.1-1.0A
PD-2503	85-264VAC; 120-370VDC	3.3VDC	0.2-5.0A	107 × 61 × 28 mm

45W PT SERİSİ
PT-45A	90-264VAC; 120-370VDC	5VDC	0.4-5.0A	127 × 76 × 28 mm
		12VDC	0.2-2.5A
		–5VDC	0.0-5.0A
PT-45B	90-264VAC; 120-370VDC	5VDC	0.4-5.0A	127 × 76 × 28 mm
		12VDC	0.2-2.5A
		–12VDC	0.0-0,5A
PT-45C	90-264VAC; 120-370VDC	5VDC	0.4-5.0A	127 × 76 × 28 mm
		15VDC	0.2-2.3A
		–15VDC	0.0-0.5A
PS-4503	90-264VAC; 120-370VDC	3VDC	0.0-5.0A	127 × 76 × 28 mm
		5VDC	0.2-7.0A
		12VDC	0-1.2.0A

65W PT SERİSİ
PT-65A	90-264VAC; 120-370VDC	5VDC	0.4-7.0A	127 × 76 × 42 mm
		12VDC	0.2-3.2A
		–5VDC	0.0-0.7A
PT-65B	90-264VAC; 120-370VDC	5VDC	0.4-7.0A	127 × 76 × 28 mm
		12VDC	0.2-3.2A
		–12VDC	0.0-0.7A
PT-65C	90-264VAC; 120-370VDC	5VDC	0.4-7.0A	127 × 76 × 28 mm
		15VDC	0.2-2.6A
		–15VDC	0.0-0.7A
PT-65D	90-264VAC; 120-370VDC	5VDC	0.5-5.0A	127 × 76 × 28 mm
		12VDC	0.2-4.0A
		24VDC	0.2-1.3A
PT-6503	90-264VAC; 120-370VDC	3VDC	0.0-7.0A	127 × 76 × 28 mm
		5VDC	0.2-10.0A
		12VDC	0.0-1.2A

5W NFM SERİSİ
NFM-05-3.3	85-264 VAC 120-370VDC	3.3VDC	1.25A	57,9X45X19.1mm
NFM-05-5	85-264 VAC 120-370VDC	5VDC	1A	57,9X45X19.1mm
NFM-05-12	85-264 VAC 120-370VDC	12VDC	0.42A	57,9X45X19.1mm
NFM-05-15	85-264 VAC 120-370VDC	15VDC	0.33A	57,9X45X19.1mm
NFM-05-24	85-264 VAC 120-370VDC	24VDC	0.23A	57,9X45X19.1mm

10W NFM SERİSİ
NFM-10-3.3	85-264 VAC 120-370VDC	3.3VDC	2.5A	65X45X22 mm
NFM-10-5	85-264 VAC 120-370VDC	5VDC	2A	65X45X22 mm
NFM-10-12	85-264 VAC 120-370VDC	12VDC	0.85A	65X45X22 mm
NFM-10-15	85-264 VAC 120-370VDC	15VDC	0.67A	65X45X22 mm
NFM-10-24	85-264 VAC 120-370VDC	24VDC	0.42A	65X45X22 mm

15W NFM SERİSİ
NFM-15-3.3	85-264 VAC 120-370VDC	3.3VDC	3.5A	69.85X48X22mm
NFM-15-5	85-264 VAC 120-370VDC	5VDC	3A	69.85X48X22mm
NFM-15-12	85-264 VAC 120-370VDC	12VDC	1.25A	69.85X48X22mm
NFM-15-15	85-264 VAC 120-370VDC	15VDC	1A	69.85X48X22mm
NFM-15-24	85-264 VAC 120-370VDC	24VDC	0.63A	69.85X48X22mm

20W NFM SERİSİ
NFM-20-3.3	85-264 VAC 120-370VDC	3.3VDC	4.5A	88.9X50.8X19.3mm
NFM-20-5	85-264 VAC 120-370VDC	5VDC	4.4A	88.9X50.8X19.3mm
NFM-20-12	85-264 VAC 120-370VDC	12VDC	1.8A	88.9X50.8X19.3mm
NFM-20-15	85-264 VAC 120-370VDC	15VDC	1.4A	88.9X50.8X19.3mm
NFM-20-24	85-264 VAC 120-370VDC	24VDC	0.92A	88.9X50.8X19.3mm
